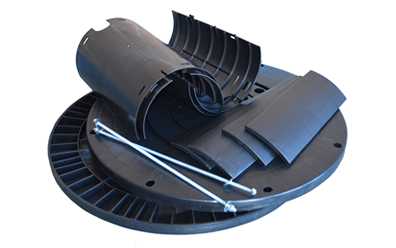

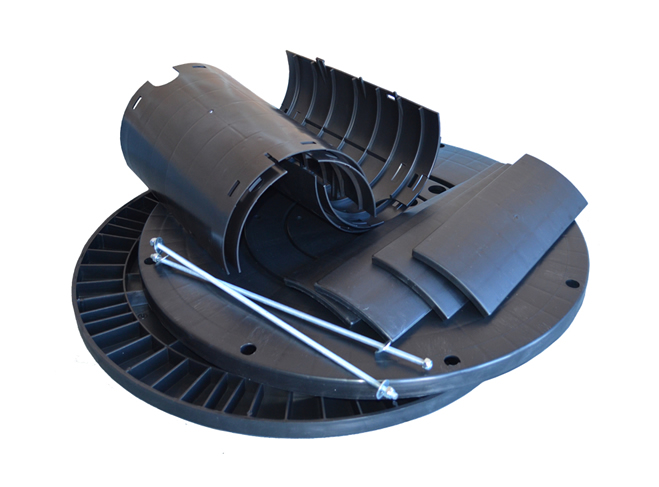

Industrial Reels Unassembled


Crown Plastics industrial reels have been designed to provide our customers a cost effective yet strong, durable product which is easy to assemble. All flanges and barrels are made from black UV recycled polypropylene.

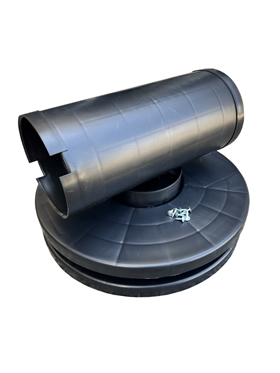

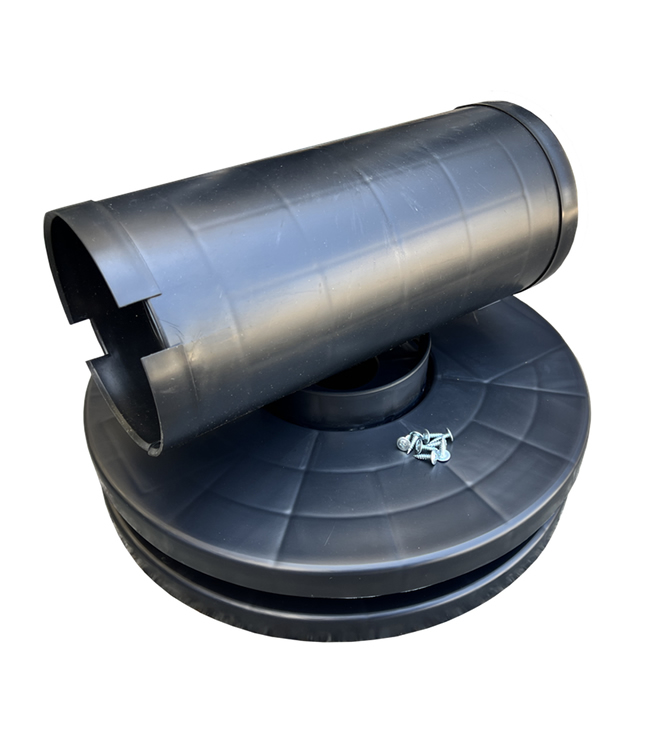

The 400mm range is available in five different barrel lengths with a 150mm external barrel diameter. The benefit of the 400mm range is you can stack 9 reels of product per layer on a pallet.

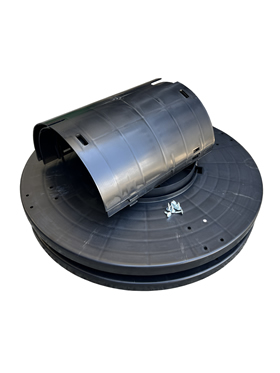

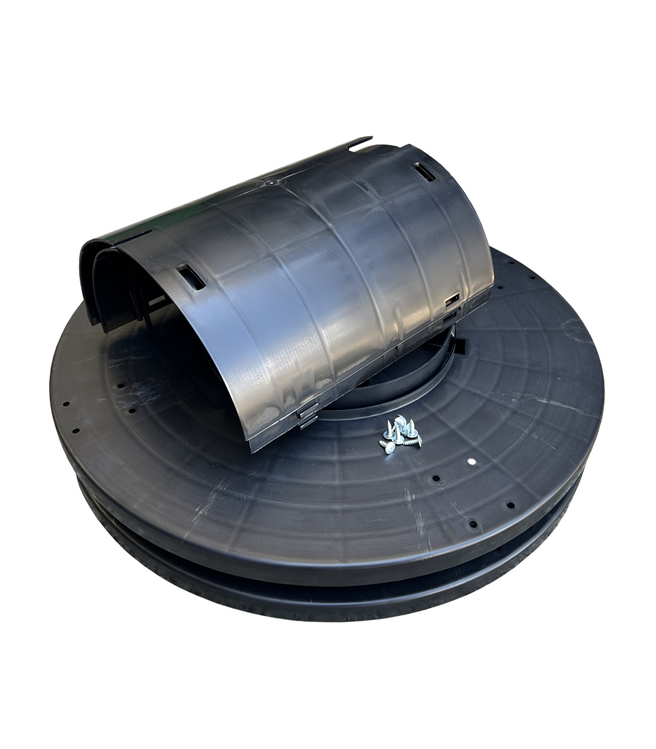

The 450-550mm range is available in three different barrel lengths with a 250mm external barrel diameter.

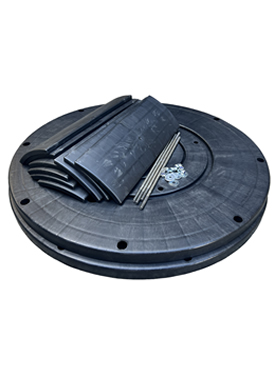

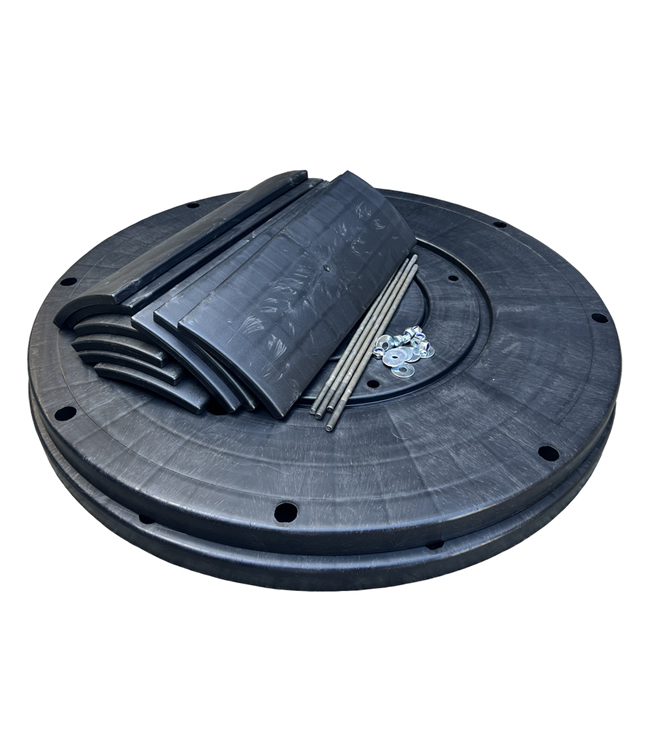

The 700-800mm range is available in 2 different external barrel diameters. The 250mm diameter barrels are available in 300,400 & 450mm barrel lengths. The 400mm diameter barrels are available in 215, 310, 360, 410, 460mm barrel lengths.

HOW TO ASSEMBLE

The 400mm Range is easy to assemble by:

  • Line up the barrel with the cut out on the flange;
  • Knock the flange and barrel together with a rubber mallet; and
  • Insert a minimum of three screws per side.

The 450-550mm Range is easy to assemble by:

  • Put the barrel together;
  • Line up the grooved key way on the flange and barrel;
  • Knocking the flange and barrel together with a rubber mallet; and
  • Insert a minimum of four screws per side.

For assembly of our 700-800mm range please visit our Youtube channel https://www.youtube.com/user/CrownPlasticsJCM/videos

All screws and assembly instructions are supplied with orders and there is assembly video guides available.

FLANGES

Flange Diameter: 400mm
Pallet QTY: 480

Flange Diameter: 450mm
Pallet QTY: 270

Flange Diameter: 550mm
Pallet QTY: 150

Flange Diameter: 700mm
Pallet QTY: 100

Flange Diameter: 800mm
Pallet QTY: 100

BARRELS for 400mm range

Barrel Length: 160mm
Barrel Diameter: 150mm
Pallet QTY (per row): 50

Barrel Length: 200mm
Barrel Diameter: 150mm
Pallet QTY (per row): 50

BAR300x150

Barrel Length: 300mm
Barrel Diameter: 150mm
Pallet QTY (per row): 50

Barrel Length: 335mm
Barrel Diameter: 150mm
Pallet QTY (per row): 50

Barrel Length: 400mm
Barrel Diameter: 150mm
Pallet QTY (per row): 50

BARRELS for 450, 550, 700, 800 x 250mm range

Barrel Length: 300mm
Barrel Diameter: 250mm
Pallet QTY (per row): 100

Barrel Length: 400mm
Barrel Diameter: 250mm
Pallet QTY (per row): 100

Barrel Length: 450mm
Barrel Diameter: 250mm
Pallet QTY (per row): 100

Slats for 700-800 x 400mm range

Barrel Length: 215mm

Barrel Length: 310mm

Barrel Length: 360mm

Barrel Length: 410mm

Barrel Length: 460mm
